RomRaider Test Release rev037 - UPDATE!

Tgui · **Joined:** Tue Jul 11, 2006 9:25 pm **Posts:** 1025

Lance Lucas wrote:

The MAF and Injector tables aren't using wideband input. They are using the stock front sensor. It would be very tough to tune low speed MAF using a post-turbo wideband (too much discrepancy).

That makes more sense. I compiled some test RomRaider jars to test where the wideband selection was occurring, and obviously found nothing. Thanks.

kascade · **Posted:** Sat Apr 19, 2008 4:33 pm

Tgui wrote:

How do the maf and injector tabs detect which wideband to use? I ask because the UTEC plugin for wideband labels its value as lambda, not AFR like the other wideband sensors.

They use the stock front sensor, not a wideband.

Tgui wrote:

I tried out your 033 release today before I saw the update, for some reason the utec logger device throws a null pointer because it can't find utec/utec.properties, even though the file obviously exists. Any thoughts? In any case, I'll take a quick look later.

I haven't touched any of the utec code, so not sure what is going on there. Let me know if you find the problem.

MichaelWRX · **Posted:** Sat Apr 19, 2008 4:38 pm

I just tested rev037 on my JDM 02 WRX
Maf and Injector tabs work great! Keep up the great work. It's much appreciated.

Tgui · **Joined:** Tue Jul 11, 2006 9:25 pm **Posts:** 1025

kascade wrote:

Tgui wrote:

How do the maf and injector tabs detect which wideband to use? I ask because the UTEC plugin for wideband labels its value as lambda, not AFR like the other wideband sensors.

They use the stock front sensor, not a wideband.

Tgui wrote:

I tried out your 033 release today before I saw the update, for some reason the utec logger device throws a null pointer because it can't find utec/utec.properties, even though the file obviously exists. Any thoughts? In any case, I'll take a quick look later.

I haven't touched any of the utec code, so not sure what is going on there. Let me know if you find the problem.

I'll let you know what I find.

bchslap · **Posted:** Sat Apr 19, 2008 7:31 pm

kascade -
I tested the 037 in 16 bit today. Works pretty well. I left defaults, with the exception of the IAT.

It was displaying a little differently (MAF) than 033, in regards to where 033, I was majority +/- 10%. 037 was displaying a scatter plot of +/- 5%..

kascade · **Posted:** Sat Apr 19, 2008 7:46 pm

bchslap wrote:

kascade -
I tested the 037 in 16 bit today. Works pretty well. I left defaults, with the exception of the IAT.

It was displaying a little differently (MAF) than 033, in regards to where 033, I was majority +/- 10%. 037 was displaying a scatter plot of +/- 5%..

That is expected. It is a result of the additional MAFv change over time (dMAFv/dt) filter parameter which, using the default setting, will filter out data where the MAFv is changing by more then 0.2 volts per second. You'll therefore have less transient data and hopefully a better, more accurate dataset giving a better result.

Feel free to play with the default value to optimise your result.

Lance Lucas · **Joined:** Wed Feb 06, 2008 4:10 pm **Posts:** 367

Finally got my cigarette lighter plug working -- apparently a ground has died somewhere under my dash

I was able to test LM-1 connectivity with the sensor in my lap. So far, so good. I'll post up if I have any issues logging.

LittleBlueGT · **Joined:** Mon Apr 30, 2007 8:02 pm **Posts:** 521

I am sure I will sound like the dumbest poster in this thread, but it never stopped me before.

I downloaded the stuff, then went in to program files and changed the files, now my Enginuty logger will not open up.

Do I have to re-install something, did I change the right files?

I really don't know what to do to enable this new feature.

:oops:

kascade · **Posted:** Sun Apr 20, 2008 5:27 pm

LittleBlueGT wrote:

I am sure I will sound like the dumbest poster in this thread, but it never stopped me before.

I downloaded the stuff, then went in to program files and changed the files, now my Enginuty logger will not open up.

Do I have to re-install something, did I change the right files?

I really don't know what to do to enable this new feature.

:oops:

The test releases are 100% standalone. You just unzip them somewhere and double click on 'run.bat' (or 'logger.bat' to go directly to the logger). Don't try and install them over the top of an old install, especially not an official release.

First post updated with some brief install instructions.

LittleBlueGT · **Joined:** Mon Apr 30, 2007 8:02 pm **Posts:** 521

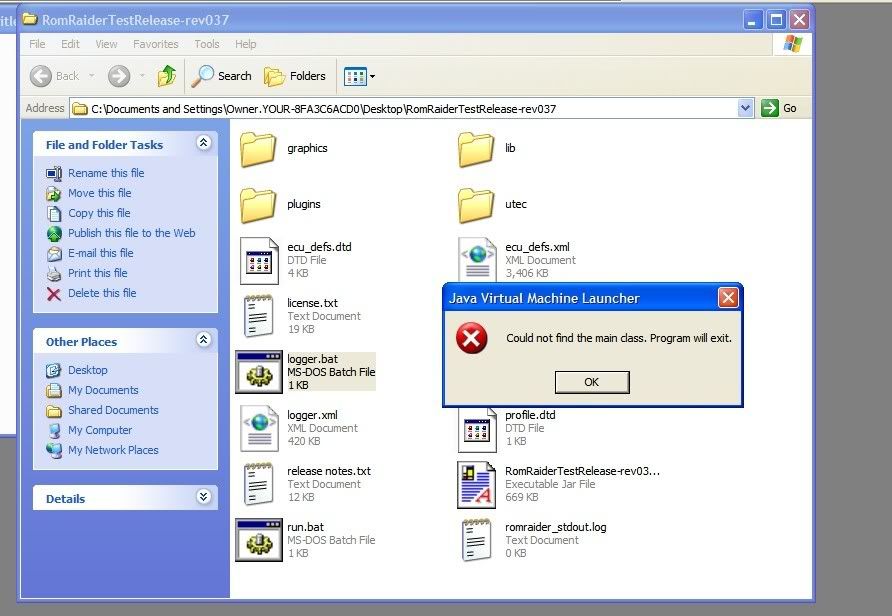

OK, I unzipped (to desktop, is that OK?) and then double-clicked on the .bat files, both came up with this:

What step did I miss?

Tgui · **Joined:** Tue Jul 11, 2006 9:25 pm **Posts:** 1025

LittleBlueGT wrote:

OK, I unzipped (to desktop, is that OK?) and then double-clicked on the .bat files, both came up with this:

What step did I miss?

Looks like the logger.bat is selected.

Double click the run.bat.

LittleBlueGT · **Joined:** Mon Apr 30, 2007 8:02 pm **Posts:** 521

Same thing happens!

LittleBlueGT · **Joined:** Mon Apr 30, 2007 8:02 pm **Posts:** 521

I just re downloaded the enginuity rev037 test release, extracted it again, run both .bat files, same thing as the above pic.

I am running XP on a laptop, what gives???????

bchslap · **Posted:** Sun Apr 20, 2008 8:57 pm

Dumb question: do you have java installed on the laptop?

LittleBlueGT · **Joined:** Mon Apr 30, 2007 8:02 pm **Posts:** 521

bchslap wrote:

Dumb question: do you have java installed on the laptop?

It is in my program files, so I think so.

How do I check to see if it is running? I looked in the task manager and didn't see java there under processes.
