I'm sharing the lightly tuned map I created for my 05 WRX, and looking for feedback on next steps. The log attached is a 3rd gear pull. The car is mostly stock except for a SPT intake, gutted downpipe, AEM 340 pump and 2015 STI intercooler. This still has the stock TD04 turbo, 420cc injectors and boost control solenoid.
ECU ID: 3E14486006
Internal ID: A4TF810F
Changes are:
CL to OL delay set to all 0

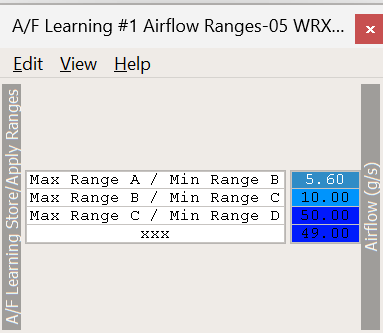

AF Learning #1 Airflow Ranges have an added element to effectively disable AF Learning D
Code:
5.598450050999999
10.002136845
50.001528951
48.999026448

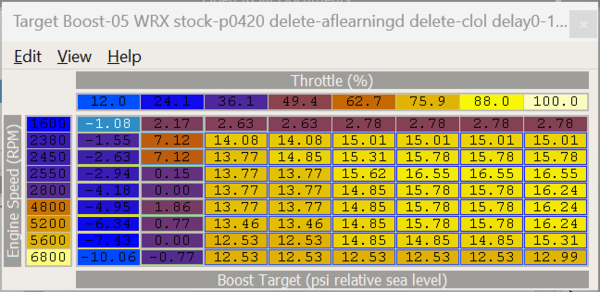

Target Boost table updated to target 15.5 psi
Code:
-1.08285912 1.082859119999998 2.16571824 2.629800719999999 2.78449488 2.78449488 2.78449488 2.78449488
-1.08285912 2.16571824 6.961237199999999 10.0551204 12.06614448 12.99430944 14.07716856 14.07716856
-2.01102408 2.939189039999999 7.425319679999998 10.98328536 12.99430944 14.54125104 15.00533352 15.469416
-2.62980072 4.022048160000001 8.5081788 12.06614448 14.07716856 15.00533352 15.469416 15.469416
-2.62980072 4.022048160000001 8.5081788 12.06614448 14.07716856 15.00533352 15.469416 15.469416
-2.93918904 3.557965679999999 8.044096319999998 10.98328536 12.99430944 14.07716856 14.54125104 15.00533352
-4.022048160000001 2.939189039999999 7.425319679999998 10.0551204 12.06614448 12.99430944 13.45839192 14.07716856
-6.961237200000001 2.011024079999999 4.950213120000001 8.044096319999998 10.0551204 10.98328536 11.44736784 12.06614448
-10.0551204 0.7734707999999983 2.939189039999999 6.497154719999997 8.044096319999998 7.425319679999998 6.961237199999999 6.961237199999999
