My apologies because I'm sure this has been addressed already, but I can't find it with a search for "LM-1".

I recently purchased a used Innovative LM-1 wideband with sensors. The LM-1 unit is working.

I already have ecuflash 2.0 and Romraider and have been succesfully logging (except wideband).

I believe it is possible to log data from the wideband into RomRaider but can’t figure out how to do so.

I connected the 2.5mm mono jack to the 3.5mm stereo output of the LM-1 and chose Innovative Wideband to be logged along with other parameters in Romraider log, but it is not showing any data. The other ECU parameters are logging fine.

Am I doing it wrong and if so, is there a way to capture the LM-1 data in the same log from Romraider?

I have an AEM wideband but the set up is similar.

-You'll need a serial to usb adapter (or usb-c, whichever available ports your computer has)
-Plug serial cable into LM-1
-Plug serial to usb adapter to serial cable
-Plug USB into laptop

In RomRaider:
-Launch Logger
-Under the "Plug-ins" tab click on your wideband
-Select the COM port the wideband is plugged into on your laptop
-Then click on "Parameters List" on the left side of the logger window
-At the top you'll have tabs for "Parameters", "Switches" and "External Sensors"
-Click on "External Sensors" and select your wideband. It should pop up in the logging window.

Thank you for the advice.

I realized I was trying to send the analog signal from the LM-1 headphone Jack into the Jack on the Ecuflash , but that wasn’t working.

I’ve ordered the serial adapter and will follow your instructions.

Hello. I tried this with my Innovate MTXL-Plus wideband gauge. I can select the sensor and it pops up in the logging window but the value is stuck at 0.

Try the Innovate MTS plug-in.

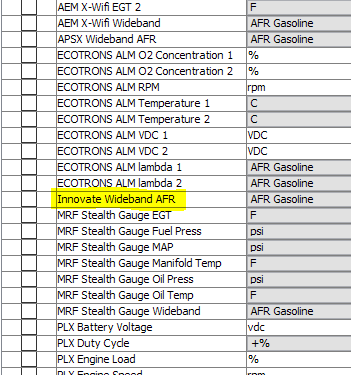

I only have the Innovate Wideband AFR to choose.

Make sure you have the 'lm2_mts.plugin' listed in the 'C:\Program Files (x86)\RomRaider\plugins\' directory.
If it's there then you need to install LogWorks3 from https://www.innovatemotorsports.com/support/
Click the Logworks 3 Download link.
This will install the dependencies that RomRaider relies on to access the WBO2 via the Innovate MTS protocol.

I just checked and the plugin is in the directory. I also have LogWorks3 installed already but I will try uninstalling and installing again. Should LogWorks3 be running before I start logging with RR?

Only one application can use the WBO2 at a time.
You can check the rr_system.log to see if the MTS library is being detected and loaded.
It will also list the COM ports found.

The other message you may see if the MTS library is not found on your system:
