UTILITY: Timing Editor (v12, 2009/12/29)

nsfw · **Joined:** Wed Nov 22, 2006 10:23 pm **Posts:** 2565

xxmax76, which app are you copying the tables from?
RomRaider? EcuFlash? Something else?

vgi · **Joined:** Sun Oct 27, 2013 8:28 pm **Posts:** 149

NSFW wrote:

Those of you who have made changes to the code, could you send me a pull request?

https://github.com/LegacyNsfw/TimingEditor

fyi, sent a pull request a while ago, it doesn't look like you're checking your git pges

covertrussian · **Joined:** Tue Jan 28, 2014 10:48 am **Posts:** 120

NSFW and vgi, as always you guys freaking rock!

Timing Editor is my go to tool for not only hand smoothing the timing, but also combining timing together and redoing the knock correction map to be less complicated

.

How hard would it be it be to allow timing editor to work with fuel maps? I've tried it, and it kind of works, but since adjustment resolution is different +/- makes huge changes.

nitros · **Joined:** Sat Sep 17, 2011 11:20 pm **Posts:** 51

I've been making some significant changes to the tool mainly for my own needs.

Added ability to filter the log via settings in the TimingEditor.exe.config file

Filters are seperated by a semi-colon ;

Code:

<FIELDNAME>:gt,11;<FIELDNAME>:lt,15;

The default is:
1. Throttle Plate Opening Angle (4-byte)* (%) must be more than 11%
AND
2. Tumble Valve Position Sensor Left (AFR) must be less than 15
AND
3. Tumble Valve Position Sensor Left (AFR) must be greater than 10
AND
4. Mass Airflow Sensor Voltage (V) must be greater than 1.58

Code:

<add key="LogFilters" value="Throttle Plate Opening Angle (4-byte)* (%):gt,11;Tumble Valve Position Sensor Left (AFR):lt,15;Tumble Valve Position Sensor Left (AFR):gt,10;Mass Airflow Sensor Voltage (V):gt,1.58"/>

For MAF autotune you must provide a AFR source table. For example I have a AEM wideband connected to my drivers side TGV. You must also select this field in the right hand column menu.

Code:

https://github.com/walterstypula/TimingEditor/releases

Attachment:

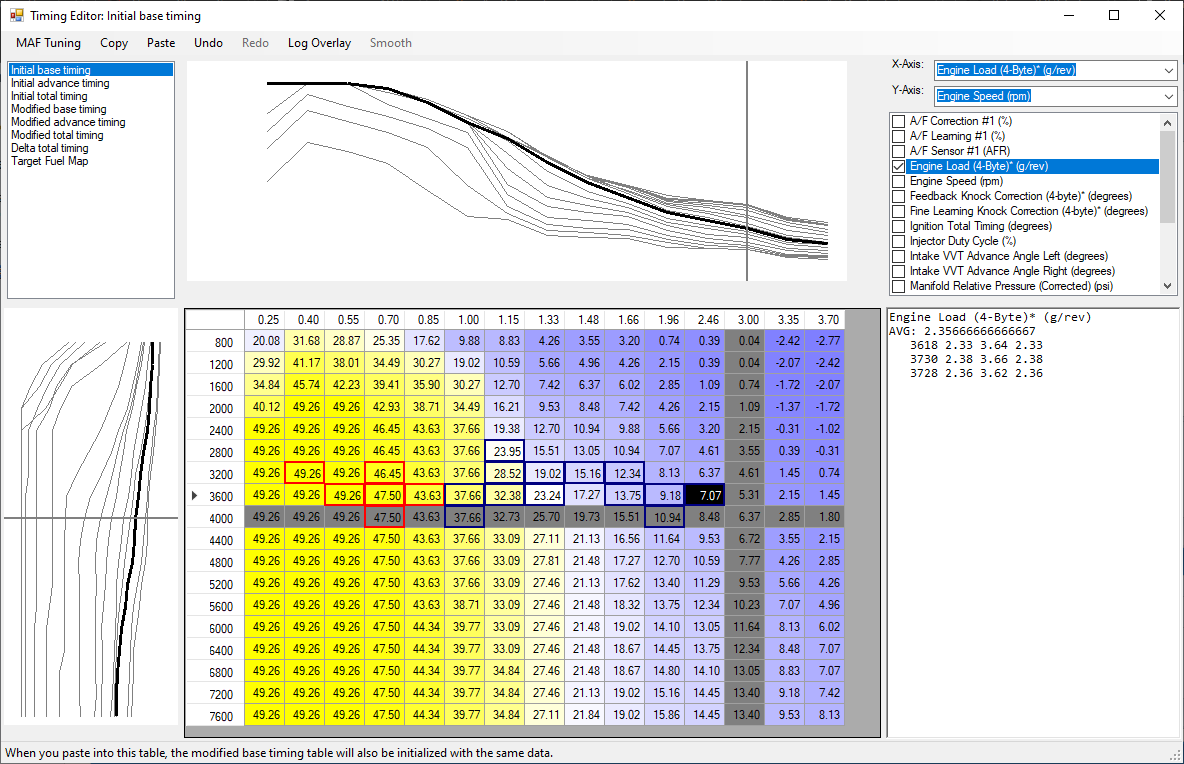

1.png [ 133.34 KiB | Viewed 4709 times ]

Attachment:

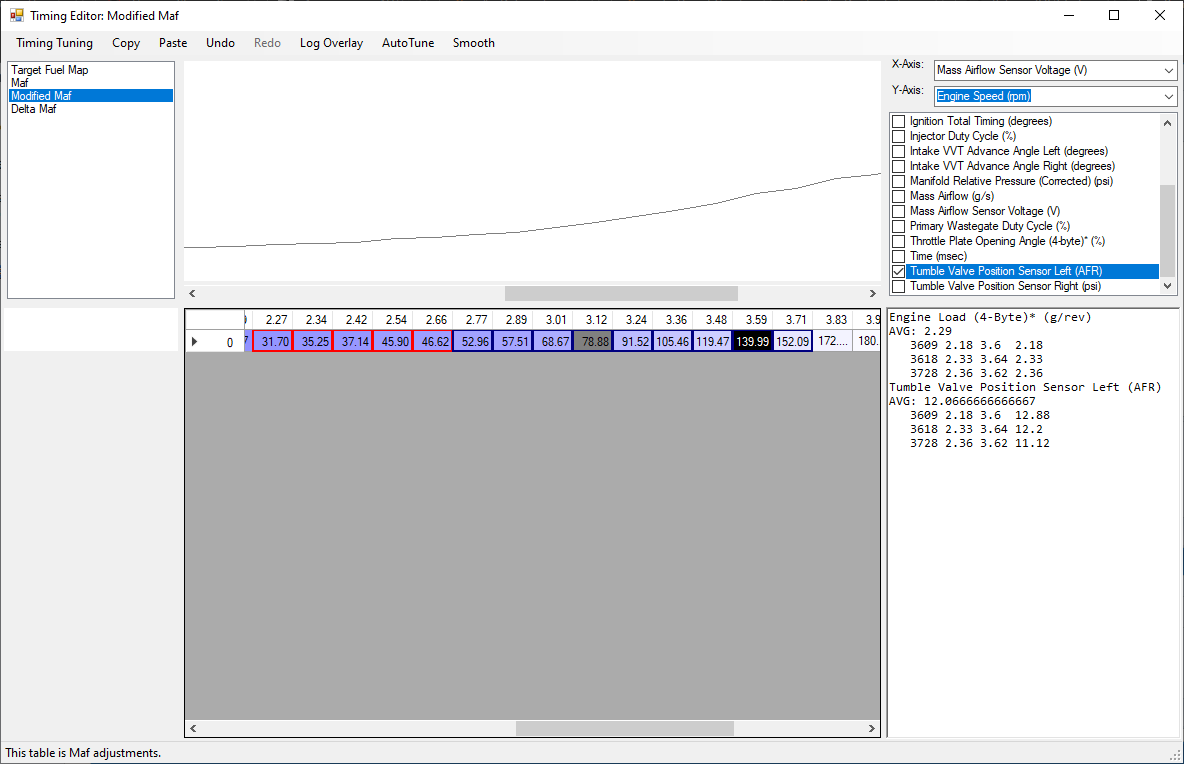

2.png [ 46.15 KiB | Viewed 4709 times ]

welaish · **Joined:** Tue Apr 29, 2014 12:48 am **Posts:** 946

nitros wrote:

I've been making some significant changes to the tool mainly for my own needs.

Added ability to filter the log via settings in the TimingEditor.exe.config file

Filters are seperated by a semi-colon ;

Code:

<FIELDNAME>:gt,11;<FIELDNAME>:lt,15;

The default is:
1. Throttle Plate Opening Angle (4-byte)* (%) must be more than 11%
AND
2. Tumble Valve Position Sensor Left (AFR) must be less than 15
AND
3. Tumble Valve Position Sensor Left (AFR) must be greater than 10
AND
4. Mass Airflow Sensor Voltage (V) must be greater than 1.58

Code:

<add key="LogFilters" value="Throttle Plate Opening Angle (4-byte)* (%):gt,11;Tumble Valve Position Sensor Left (AFR):lt,15;Tumble Valve Position Sensor Left (AFR):gt,10;Mass Airflow Sensor Voltage (V):gt,1.58"/>

For MAF autotune you must provide a AFR source table. For example I have a AEM wideband connected to my drivers side TGV. You must also select this field in the right hand column menu.

Code:

https://github.com/walterstypula/TimingEditor/releases

Attachment:


Attachment:


good work however why you are not using the VGI tool: viewtopic.php?t=10481

nitros · **Joined:** Sat Sep 17, 2011 11:20 pm **Posts:** 51

welaish wrote:

good work however why you are not using the VGI tool: viewtopic.php?t=10481

No real good reason besides I wanted to see everything in one place with the log overlays and more importantly give me a project to work on. VGI's maf scaling is much more sophisticated and more accurate. The version implemented here is very similar to the method used by bcheck555 viewtopic.php?f=32&t=4863 with some standard deviations used to eliminate outliers.

ajayel · **Joined:** Mon Oct 30, 2017 8:19 pm **Posts:** 79

Thanks for the Timing Editor, I'm enjoying v12. Just a minor observation - Delta Total Timing doesn't update after changes are made with the +,- keys. It definitely does after the original base timing is re-pasted.

Alstg180 · **Joined:** Sun Jun 19, 2022 7:03 pm **Posts:** 29

I keep getting a error msg trying to use this program. Downloaded timing editor.exe. version 12

leetdrv · **Joined:** Fri Sep 09, 2016 4:07 pm **Posts:** 6

Not sure if there is a newer version than 14. Would be great to have compensation for uneven column/row spacing present in stock maps. Awesome tool!
