2020 USDM STI AE5Z500V CD2A904007

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

Donations are welcome!

The Romraider definition for this Rom is completed.

The EcuFlash def for this Rom is completed.

Link to stock Rom

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

Logger addresses:

Code:

FFFF6B32   E_AF_Correction_1_2byteExtExt_E82
FFFF796C   E_AF_Correction_1_4byteExt_E81
FFFF6B36   E_AF_Learning_1_2byteExtExt_E83
FFFF7AFC   E_AF_Learning_1_4byteExt_E48
FFFF32A8   E_AF_Learning_1_A_StoredExt_E44
FFFF32B0   E_AF_Learning_1_B_StoredExt_E45
FFFF32B8   E_AF_Learning_1_C_StoredExt_E46
FFFF32C0   E_AF_Learning_1_D_StoredExt_E47
FFFF7B03   E_AF_Learning_Airflow_Range_CurrentExt_E61
FFFF6B20   E_AF_Sensor_1_2byteExtExt_E92
FFFF67A0   E_AF_Sensor_1_4byteExt_E91
FFFF5CF4   E_Boost_ErrorExt_E35
FFFFB665   E_CLOL_FuelingExt_E33
FFFF6B34   E_Closed_Loop_Fueling_Target_2byteExt_E122
FFFF7A68   E_Closed_Loop_Fueling_Target_4byteExt_E121
FFFF6B4D   E_Engine_Load_1byteExtExt_E86
FFFF65C0   E_Engine_Load_4ByteExt_E32
FFFF6898   E_Engine_Speed_DeltaExt_E157
FFFF6B57   E_Feedback_Knock_Correction_1byteExtExt_E94
FFFF8444   E_Feedback_Knock_Correction_4byteExt_E39
FFFF6B2E   E_Final_Fueling_Base_2byteExt_E124
FFFF7680   E_Final_Fueling_Base_4byteExt_E123
FFFF6B5A   E_Fine_Learning_Knock_Correction_1byteExtExt_E95
FFFF84E0   E_Fine_Learning_Knock_Correction_4byteExt_E41
FFFF84EC   E_Fine_Learning_Table_OffsetExt_E58
FFFF76C0   E_Fuel_Injector_1_Latency_4byteExt_E50
FFFF6B2A   E_Fuel_Injector_1_Pulse_Width_2byteExtExt_E99
FFFF8018   E_Fuel_Injector_1_Pulse_Width_4byteExt_E60
FFFF6A6D   E_Gear_CalculatedExt_E59
FFFF6B59   E_IAM_1byteExtExt_E96
FFFF3384   E_IAM_4byteExt_E31
FFFF8BC8   E_Idle_Speed_Map_SelectionExt_E49
FFFF8190   E_Ignition_Base_TimingExt_E53
FFFF8440   E_Knock_Correction_Advance_4byteExt_E43
FFFF84B4   E_Knock_Correction_Advance_IAM_onlyExt_E40
FFFF84AC   E_Knock_Correction_Advance_Max_PrimaryExt_E118
FFFF8401   E_Knock_Sum_Cylinder_1Ext_E165
FFFF8402   E_Knock_Sum_Cylinder_2Ext_E166
FFFF8403   E_Knock_Sum_Cylinder_3Ext_E167
FFFF8404   E_Knock_Sum_Cylinder_4Ext_E168
FFFF63D4   E_Manifold_Relative_Pressure_4byteExt_E113
FFFF6B18   E_Manifold_Relative_Sea_Level_Pressure_2byteExtExt_E89
FFFF63D0   E_Manifold_Relative_Sea_Level_Pressure_4byteExt_E52
FFFF9364   E_Map_Ratio_PrimaryExt_E42
FFFF6B3C   E_Primary_Open_Loop_Map_Enrichment_2byteExtExt_E85
FFFF7C34   E_Primary_Open_Loop_Map_Enrichment_4byteExt_E84
FFFF5D1C   E_Primary_Wastegate_Duty_MaximumExt_4byteExt_E77
FFFF6B63   E_Primary_WGDC_Maximum_1byteExtExt_E112
FFFF87D4   E_Requested_TorqueExt_E56
FFFF6B48   E_Target_Boost_2byteExtExt_E90
FFFF5CFC   E_Target_Boost_4byteExt_E36
FFFF5CF8   E_Target_Boost_Relative_4byteExt_E120
FFFF87CC   E_Target_Throttle_Plate_PositionExt_E57
FFFF7ECC   E_Tipin_Enrichment_Last_CalculatedExt_E55
FFFF64A0   E_Tipin_ThrottleExt_E54
FFFF5D08   E_Turbo_Dynamics_Integral_4byteExt_E34
FFFF5D04   E_Turbo_Dynamics_Proportional_4byteExt_E37

Rspec · **Posted:** Thu Aug 26, 2021 10:00 pm

Missing lots of CL/OL Transition Tables. Also has some incorrect scalars.

-Primary OL Fueling Failsafe engine load axis is wrong
-Closed Loop target Comp B elements should be 12-11 instead of 13-14.
-Base timing primary cruise engine load axis is wrong

Logger location of a/f sensor #1 4 byte doesn't seem to work either.

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

RR or ECUFlash?

Which/where is your 32Bitbase file from? I think you may need to update this.....

All the tables you list display correctly with RR/ECUFlash for me.

Definition was created from AE5Z000V. I can see that a couple of CL/OL tables have not carried over. Will update when I can.

Attachment:

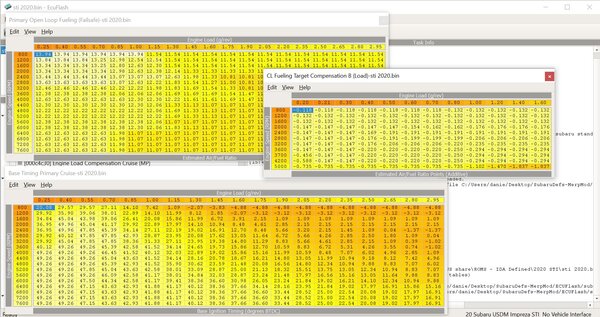

RR.jpg [ 705.48 KiB | Viewed 4698 times ]

Attachment:

ECUF.jpg [ 982.17 KiB | Viewed 4698 times ]

Rspec · **Posted:** Fri Aug 27, 2021 12:56 pm

The Lorax wrote:

RR or ECUFlash?

Which/where is your 32Bitbase file from? I think you may need to update this.....

All the tables you list display correctly with RR/ECUFlash for me.

Definition was created from AE5Z000V. I can see that a couple of CL/OL tables have not carried over. Will update when I can.

Attachment:


Attachment:


ECUFlash

hmm interesting, using what I believed to be the latest 32 bit base from the git here https://github.com/TD-D/SubaruDefs/tree/Alpha/ECUFlash/subaru%20standard/Bases

currancchs · **Posted:** Fri Aug 27, 2021 2:08 pm

I didn't think anyone was working on the new stuff (i.e. 2015 and up). Just wanted to say THANK YOU!

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

Rspec wrote:

ECUFlash

hmm interesting, using what I believed to be the latest 32 bit base from the git here https://github.com/TD-D/SubaruDefs/tree/Alpha/ECUFlash/subaru%20standard/Bases

Yeah, dunno. That's what I'm using and just double checked.

Have updated CL stuff for ECUFlash only at this stage - there's no RR def for this presently, so didn't automatically transfer between IDA, RR and ECUFlash.

Logger address for E_AF_Sensor_1_4byteExt_E91 amended to correct address.

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

currancchs wrote:

I didn't think anyone was working on the new stuff (i.e. 2015 and up). Just wanted to say THANK YOU!

Appreciated. Not sure I'd call it working.....! Not much time available these days, sometimes you get lucky!

Rspec · **Posted:** Sat Aug 28, 2021 11:22 am

The Lorax wrote:

Rspec wrote:

ECUFlash

hmm interesting, using what I believed to be the latest 32 bit base from the git here https://github.com/TD-D/SubaruDefs/tree/Alpha/ECUFlash/subaru%20standard/Bases

Yeah, dunno. That's what I'm using and just double checked.

Have updated CL stuff for ECUFlash only at this stage - there's no RR def for this presently, so didn't automatically transfer between IDA, RR and ECUFlash.

Logger address for E_AF_Sensor_1_4byteExt_E91 amended to correct address.

Appreciate it! Looks great now. What are the chances some of the other rom files 2017+ can be updated with the cl/ol transition tables?
-AE5Z510V
-AE5W100V
-AE5Z321V

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

New upload now includes RR CL transition tables

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

Rspec wrote:

Appreciate it! Looks great now. What are the chances some of the other rom files 2017+ can be updated with the cl/ol transition tables? Pretty good, see below

-AE5Z510V Google can't find me any references to this ROM

-AE5W100V Check def updates on github

-AE5Z321V Check def updates on github

CryptikPunk · **Joined:** Tue May 24, 2022 4:03 pm **Posts:** 13

Hi! I noticed an oddity with Boost Limit (Fuel Cut)_ and wondering if it's just my base???
I did download the latest 32BITBASE from git, other roms (AE5T200V/AE5T201V) show the table as they should.

Attachment:

Things.JPG [ 73.3 KiB | Viewed 3376 times ]

dschultz · **Posted:** Wed Jul 13, 2022 8:10 am

Is it related to this?
viewtopic.php?p=166039#p166039

The Lorax · **Joined:** Tue Nov 04, 2014 7:51 am **Posts:** 219

CryptikPunk wrote:

Hi! I noticed an oddity with Boost Limit (Fuel Cut)_ and wondering if it's just my base???
I did download the latest 32BITBASE from git, other roms (AE5T200V/AE5T201V) show the table as they should.

This is what my defs show:

Attachment:

Boost.jpg [ 123.5 KiB | Viewed 3374 times ]

CryptikPunk · **Joined:** Tue May 24, 2022 4:03 pm **Posts:** 13

I downloaded and overwrote what I had in the EF meta directory and it shows up correctly now.

Not sure how that was jacked up, I didn't mess with anything in that file.
