 Post subject: 02 WRX ECU in 04 WRX?
PostPosted: Fri Apr 18, 2008 8:46 pm
Offline
RomRaider Donator

Joined: Wed Feb 06, 2008 8:10 pm
Posts: 367
Can this be done? I have access to an 02 WRX ECU, I'd like to use it in my car if possible. It would allow me to use one of the ROMs that has been edited to go beyond 300g/s, improved CL/OL delay conrol, etc.

The issues I can think of would be any sensors that may have been added/deleted between MY's? I'm sure there are more, but I didn't come up with anything searching on NASIOC.

_________________
2004 WRX Wagon and 2013 STI Sedan


Top
 Profile

 Post subject: Re: 02 WRX ECU in 04 WRX?
PostPosted: Fri Apr 18, 2008 8:53 pm
Offline
Experienced
User avatar

Joined: Thu Oct 19, 2006 3:34 pm
Posts: 839
Location: Putnam, CT
I've run a 04 ECU in a 02 wrx, and that worked, so I dont see why it wouldnt go the other way. There are no main harness changes between 02-05 that prevent it from working....

_________________
Turbo Mike Tuning
Charlton, MA
AWD Mustang Dyno


Top
 Profile

 Post subject: Re: 02 WRX ECU in 04 WRX?
PostPosted: Sat Apr 19, 2008 12:51 am
Offline
RomRaider Donator

Joined: Wed Feb 06, 2008 8:10 pm
Posts: 367
Cool, thanks Mike. Hopefully I'll be trying it out tonight.

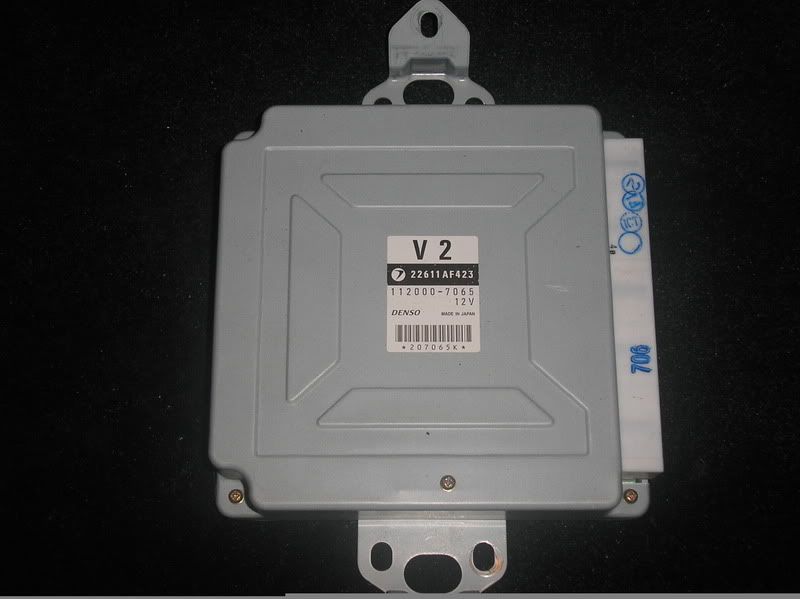

Here are the #'s on the ECU I'll be testing:


_________________
2004 WRX Wagon and 2013 STI Sedan


Top
 Profile

 Post subject: Re: 02 WRX ECU in 04 WRX?
PostPosted: Sat Apr 19, 2008 8:47 am
Offline
RomRaider Donator

Joined: Wed Feb 06, 2008 8:10 pm
Posts: 367
Results are in...

It works. I copied my tune in from my A4TF520F 04 ROM and away I went. A few tables in the 02 are slightly bigger, so I get a bit more resolution out of the deal as well :)

_________________
2004 WRX Wagon and 2013 STI Sedan


Top
 Profile
